Strategies to deal with large data in R

module 2 week 7 large data programming R tidyverse SQL

Introduction to dealing with large data in R.

Stephanie Hicks https://stephaniehicks.com/ (Department of Biostatistics, Johns Hopkins)https://www.jhsph.edu
10-12-2021

Pre-lecture materials

Acknowledgements

Material for this lecture was borrowed and adopted from

Learning objectives

At the end of this lesson you will:

Introduction

First, we load a few R packages

For most data analyses in R, data you encounter can easily be read into memory in R (either locally or on a cluster of sorts) and analyzed in a standard way. However, if you do encounter data that is too big to be read into memory, you might start to search for strategies on how to deal with this data. For most of people, it might be obvious why you would want to use R with big data, but it not obvious how.

Now, you might say advances in hardware make this less and less of a problem as most laptops come with >4-16Gb of memory and it is easy to get instances on cloud providers with terabytes of RAM.

That’s definitely true. But there might be some problems that you will run into.

Loading data into memory

Let’s say you are able load part of the data into the RAM on your machine (in-memory).

If you had something like a zipped .csv file, you could always try loading just the first few lines into memory (see n_max = 8 below) to see what is inside the files, but eventually you will likely need a different strategy.

read_csv(readr_example("mtcars.csv.bz2"),
         skip = 0, n_max = 8, progress = show_progress())
# A tibble: 8 × 11
    mpg   cyl  disp    hp  drat    wt  qsec    vs    am  gear  carb
  <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
1  21       6  160    110  3.9   2.62  16.5     0     1     4     4
2  21       6  160    110  3.9   2.88  17.0     0     1     4     4
3  22.8     4  108     93  3.85  2.32  18.6     1     1     4     1
4  21.4     6  258    110  3.08  3.22  19.4     1     0     3     1
5  18.7     8  360    175  3.15  3.44  17.0     0     0     3     2
6  18.1     6  225    105  2.76  3.46  20.2     1     0     3     1
7  14.3     8  360    245  3.21  3.57  15.8     0     0     3     4
8  24.4     4  147.    62  3.69  3.19  20       1     0     4     2

Memory for calculations

You have to keep in mind that you will need to do something with the data too (typically need 2-3 times the RAM of the size of your data. This may or may not be a problem for your hardware that you are working with.

Transfer speeds can be slow

If you are working with data on a server that needs to be transferred somewhere to do the processing or computation once the data has been transferred.

For example, the time it takes to make a call over the internet from San Francisco to New York City takes over 4 times longer than reading from a standard hard drive and over 200 times longer than reading from a solid state hard drive.

This is an especially big problem early in developing a model or performing a data analysis, when data might have to be pulled repeatedly.

[image source]

Today we are going to discuss some strategies (and R packages) for working with big data in R. We will also go through some examples of how to execute these strategies in R.

Data

We will use the nycflights13 data that we learned about previously.

What’s in the data package?

“This package contains information about all flights that departed from NYC (e.g. EWR, JFK and LGA) to destinations in the United States, Puerto Rico, and the American Virgin Islands) in 2013: 336,776 flights in total. To help understand what causes delays, it also includes a number of other useful datasets.”

This package provides the following data tables.

However, this time we will cache the data from the nycflights13 package in a form we are already familiar with (SQLite databases). But there are many other data formats that you might encounter including:

SQLite databases

OK so as mentioned above, let’s use the SQLite format to demonstrate the strategies for dealing with large data. However, they can easily transfer other data formats.

Reminder: There are several ways to query SQL or SQLite databases in R.

Ok, we will set up the SQLite database using the nycflights13_sqlite() function in the dbplyr package.

library(nycflights13)
if(!file.exists(here("data", "nycflights13", "nycflights13.sqlite"))){
  dir.create(here("data", "nycflights13"))
  dbplyr::nycflights13_sqlite(path=here("data", "nycflights13"))
}

We can check to see what file has been created

list.files(here("data", "nycflights13"))
[1] "nycflights13.sqlite"

Question: How can we use the DBI::dbConnect() function with RSQLite::SQLite() backend to connect to the SQLite database?

library(DBI)
# try it yourself
Click here for the answer.
library(DBI)
conn <- DBI::dbConnect(RSQLite::SQLite(),
                       here("data", "nycflights13", "nycflights13.sqlite"))
conn
<SQLiteConnection>
  Path: /Users/shicks/Documents/github/teaching/jhustatcomputing2021/data/nycflights13/nycflights13.sqlite
  Extensions: TRUE

Question: Next, let’s use the dplyr::tbl() function returns something that feels like a data frame with the flights dataset. Finally, show the first 10 rows of the data frame.

# try it yourself
Click here for the answer.
tbl(conn, "flights") %>%
  head(n=10)
# Source:   lazy query [?? x 19]
# Database: sqlite 3.36.0
#   [/Users/shicks/Documents/github/teaching/jhustatcomputing2021/data/nycflights13/nycflights13.sqlite]
    year month   day dep_time sched_dep_time dep_delay arr_time
   <int> <int> <int>    <int>          <int>     <dbl>    <int>
 1  2013     1     1      517            515         2      830
 2  2013     1     1      533            529         4      850
 3  2013     1     1      542            540         2      923
 4  2013     1     1      544            545        -1     1004
 5  2013     1     1      554            600        -6      812
 6  2013     1     1      554            558        -4      740
 7  2013     1     1      555            600        -5      913
 8  2013     1     1      557            600        -3      709
 9  2013     1     1      557            600        -3      838
10  2013     1     1      558            600        -2      753
# … with 12 more variables: sched_arr_time <int>, arr_delay <dbl>,
#   carrier <chr>, flight <int>, tailnum <chr>, origin <chr>,
#   dest <chr>, air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dbl>

Before we jump into the next section, let’s save this data frame as flights_df and count the number of rows using dplyr::tally():

flights_df <- dplyr::tbl(conn, "flights")
flights_df %>%
  tally()
# Source:   lazy query [?? x 1]
# Database: sqlite 3.36.0
#   [/Users/shicks/Documents/github/teaching/jhustatcomputing2021/data/nycflights13/nycflights13.sqlite]
       n
   <int>
1 336776

Even though it only has a few hundred thousand rows, it is still useful to demonstrate some strategies for dealing with big data in R.

Sample and Model

The first strategy is to downsample your data to a size that can be downloaded (or if already downloaded, just loaded into memory) and perform your analysis on the downsampled data. This also allows models and methods to be run in a reasonable amount of time.

[image source]

Note: If maintaining class balance is necessary (or one class needs to be over/under-sampled), it is reasonably simple to stratify the data set during sampling.

Advantages

Disadvantages

Example

Let’s say we want to model whether flights will be delayed or not. We will start with some minor cleaning of the data.

First, we will create a is_delayed column in the database:

flights_df <- flights_df %>%
    dplyr::mutate(is_delayed = arr_delay > 0,
                  hour = sched_dep_time / 100) %>% # Get just hour (currently formatted so 6 pm = 1800)
  # Remove small carriers that make modeling difficult
  dplyr::filter(!is.na(is_delayed) & !carrier %in% c("OO", "HA"))

Here are the total number of flights that were delayed or not:

flights_df %>%
  dplyr::count(is_delayed)
# Source:   lazy query [?? x 2]
# Database: sqlite 3.36.0
#   [/Users/shicks/Documents/github/teaching/jhustatcomputing2021/data/nycflights13/nycflights13.sqlite]
  is_delayed      n
       <int>  <int>
1          0 194078
2          1 132897

These classes are reasonably well balanced, but we going to use logistic regression, so I will load a perfectly balanced sample of 40,000 data points.

For most databases, random sampling methods do not work smoothly with R.

flights_df %>%
  dplyr::sample_n(size = 1000)
Error: `tbl` must be a data frame, not a `tbl_SQLiteConnection/tbl_dbi/tbl_sql/tbl_lazy/tbl` object.

So it is not suggested to use dplyr::sample_n() or dplyr::sample_frac(). So we will have to be a little more manual.

set.seed(1234)

# Create a modeling data set
df_mod <- flights_df %>%
  # Within each class
  group_by(is_delayed) %>%
  # Assign random rank
  mutate(x = random() %>% row_number()) %>%
  ungroup()

Note: dplyr::collect() forces a computation of a database query and retrieves data into a local tibble

So, here, we take the first 20K for each class for training set:

df_train <- df_mod %>%
  group_by(is_delayed) %>%
  filter(x <= 20000) %>%
  collect()

Then, we take next 5K for test set:

df_test <- df_mod %>%
  group_by(is_delayed) %>%
  filter(x > 20000 & x <= 25000) %>%
  collect() # again, this data is now loaded locally
# Double check I sampled right
count(df_train, is_delayed)
# A tibble: 2 × 2
# Groups:   is_delayed [2]
  is_delayed     n
       <int> <int>
1          0 20000
2          1 20000
count(df_test, is_delayed)
# A tibble: 2 × 2
# Groups:   is_delayed [2]
  is_delayed     n
       <int> <int>
1          0  5000
2          1  5000

Now let’s build a model – let’s see if we can predict whether there will be a delay or not by the combination of the carrier, and the month of the flight.

[1] "2021-10-11 22:34:00 EDT"
mod <- glm(is_delayed ~ carrier + as.factor(month),
           family = "binomial", data = df_train)
Sys.time()
[1] "2021-10-11 22:34:01 EDT"
summary(mod)

Call:
glm(formula = is_delayed ~ carrier + as.factor(month), family = "binomial",
    data = df_train)

Deviance Residuals:
     Min        1Q    Median        3Q       Max
-1.74540  -1.14986  -0.04264   1.13010   1.61318

Coefficients:
                   Estimate Std. Error z value Pr(>|z|)
(Intercept)        -0.11861    0.05556  -2.135 0.032759 *
carrierAA          -0.10929    0.05494  -1.989 0.046678 *
carrierAS          -0.16211    0.21976  -0.738 0.460723
carrierB6           0.28459    0.05055   5.630 1.80e-08 ***
carrierDL          -0.13092    0.05175  -2.530 0.011405 *
carrierEV           0.54128    0.05099  10.616  < 2e-16 ***
carrierF9           1.02775    0.25953   3.960 7.49e-05 ***
carrierFL           0.92384    0.11058   8.355  < 2e-16 ***
carrierMQ           0.48352    0.05702   8.480  < 2e-16 ***
carrierUA           0.10446    0.05034   2.075 0.037989 *
carrierUS           0.05058    0.06053   0.836 0.403343
carrierVX          -0.04523    0.09541  -0.474 0.635491
carrierWN           0.40543    0.06898   5.878 4.16e-09 ***
carrierYV           0.61160    0.27411   2.231 0.025667 *
as.factor(month)2   0.01977    0.05180   0.382 0.702633
as.factor(month)3  -0.17260    0.04971  -3.472 0.000516 ***
as.factor(month)4   0.12777    0.04954   2.579 0.009901 **
as.factor(month)5  -0.25054    0.04983  -5.027 4.97e-07 ***
as.factor(month)6   0.18434    0.04954   3.721 0.000198 ***
as.factor(month)7   0.23093    0.04889   4.723 2.32e-06 ***
as.factor(month)8  -0.13891    0.04934  -2.815 0.004874 **
as.factor(month)9  -0.73390    0.05214 -14.077  < 2e-16 ***
as.factor(month)10 -0.32838    0.04946  -6.639 3.16e-11 ***
as.factor(month)11 -0.28839    0.05022  -5.743 9.33e-09 ***
as.factor(month)12  0.36816    0.04956   7.429 1.09e-13 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 55452  on 39999  degrees of freedom
Residual deviance: 54054  on 39975  degrees of freedom
AIC: 54104

Number of Fisher Scoring iterations: 4
# Out-of-Sample AUROC
df_test$pred <- predict(mod, newdata = df_test)
auc <- suppressMessages(pROC::auc(df_test$is_delayed, df_test$pred))
auc
Area under the curve: 0.6025

As you can see, this is not a great model, but that’s not the point here!

Instead, we showed how to build a model on a small subset of a big data set. Including sampling time, this took my laptop a second to run, making it easy to iterate quickly as I want to improve the model. After I’m happy with this model, I could pull down a larger sample or even the entire data set if it is feasible, or do something with the model from the sample.

Chunk and Pull

A second strategy to chunk the data into separable units and each chunk is pulled separately and operated on serially, in parallel, or after recombining. This strategy is conceptually similar to the MapReduce algorithm – or MapReduce is a framework using which we can write applications to process huge amounts of data, in parallel, on large clusters in a reliable mannermore here on MapReduce. Depending on the task at hand, the chunks might be time periods, geographic units, or logical like separate businesses, departments, products, or customer segments.

[image source]

Advantages

Disadvantages

Example

In this case, I want to build another model of on-time arrival, but I want to do it per-carrier. This is exactly the kind of use case that is ideal for chunk and pull.

I am going to separately pull the data in by carrier and run the model on each carrier’s data.

I am going to start by just getting the complete list of the carriers.

# Get all unique carriers
carriers <- flights_df %>%
  select(carrier) %>%
  distinct() %>%
  pull(carrier)

carriers
 [1] "9E" "AA" "AS" "B6" "DL" "EV" "F9" "FL" "MQ" "UA" "US" "VX" "WN"
[14] "YV"

Now, I will write a function that

carrier_model <- function(carrier_name) {
  # Pull a chunk of data
  df_mod <- flights_df %>%
    filter(carrier == carrier_name) %>%
    collect()

  # Split into training and test
  split <- df_mod %>%
    rsample::initial_split(prop = 0.9, strata = "is_delayed") %>%
    suppressMessages()

  # Get training data
  df_train <- split %>%
                rsample::training()

  # Train model
  mod <- glm(is_delayed ~ as.factor(month),
             family = "binomial", data = df_train)

  # Get out-of-sample AUROC
  df_test <- split %>%
                rsample::testing()
  df_test$pred <- predict(mod, newdata = df_test)
  suppressMessages(auc <- pROC::auc(df_test$is_delayed ~ df_test$pred))

  auc
}

Now, I am going to actually run the carrier model function across each of the carriers. This code runs pretty quickly, and so I do not think the overhead of parallelization would be worth it.

set.seed(1234)
mods <- lapply(carriers, carrier_model) %>%
  suppressMessages()

names(mods) <- carriers

Let’s look at the results.

mods
$`9E`
Area under the curve: 0.5711

$AA
Area under the curve: 0.5731

$AS
Area under the curve: 0.5597

$B6
Area under the curve: 0.6208

$DL
Area under the curve: 0.5817

$EV
Area under the curve: 0.588

$F9
Area under the curve: 0.5134

$FL
Area under the curve: 0.5508

$MQ
Area under the curve: 0.572

$UA
Area under the curve: 0.6046

$US
Area under the curve: 0.5811

$VX
Area under the curve: 0.67

$WN
Area under the curve: 0.5607

$YV
Area under the curve: 0.6041

So these models (again) are a little better than random chance. The point was that we utilized the chunk and pull strategy to pull the data separately by logical units and building a model on each chunk.

Push Compute to Data

A third strategy is push some of the computing to where the data are stored before moving a subset of the data out of wherever it is stored and into R. Imagine the data is compressed on a database somwhere. It is often possible to obtain significant speedups simply by doing summarization or filtering in the database before pulling the data into R.

Sometimes, more complex operations are also possible, including computing histogram and raster maps with dbplot, building a model with modeldb, and generating predictions from machine learning models with tidypredict.

[image source]

Advantages

Disadvantages

Example

In this case, I am doing a pretty simple BI task - plotting the proportion of flights that are late by the hour of departure and the airline.

Just by way of comparison, let’s run this first the naive way -– pulling all the data to my system and then doing my data manipulation to plot.

system.time(
  df_plot <- flights_df %>%
    collect() %>%
    group_by(carrier, sched_dep_time) %>%
    # Get proportion per carrier-time
    summarize(delay_pct = mean(is_delayed, na.rm = TRUE)) %>%
    ungroup() %>%
    # Change string times into actual times
    dplyr::mutate(sched_dep_time =
                    stringr::str_pad(sched_dep_time, 4, "left", "0") %>%
             strptime("%H%M") %>%  # converts character class into POSIXlt class
             as.POSIXct()) # converts POSIXlt class to POSIXct class
  ) -> timing1

timing1
   user  system elapsed
  1.972   0.064   2.066

Now that wasn’t too bad, just 2.066 seconds on my laptop.

But let’s see how much of a speedup we can get from chunk and pull. The conceptual change here is significant - I’m doing as much work as possible in the SQLite server now instead of locally. But using dplyr means that the code change is minimal. The only difference in the code is that the collect() call got moved down by a few lines (to below ungroup()).

system.time(
  df_plot <- flights_df %>%
    dplyr::group_by(carrier, sched_dep_time) %>%
    # Get proportion per carrier-time
    dplyr::summarize(delay_pct = mean(is_delayed, na.rm = TRUE)) %>%
    dplyr::ungroup() %>%
    dplyr::collect() %>%
    # Change string times into actual times
    dplyr::mutate(sched_dep_time =
                    stringr::str_pad(sched_dep_time, 4, "left", "0") %>%
             strptime("%H%M") %>%
             as.POSIXct())) -> timing2

timing2
   user  system elapsed
  0.431   0.089   0.531

It might have taken you the same time to read this code as the last chunk, but this took only 0.531 seconds to run, almost an order of magnitude faster! That’s pretty good for just moving one line of code.

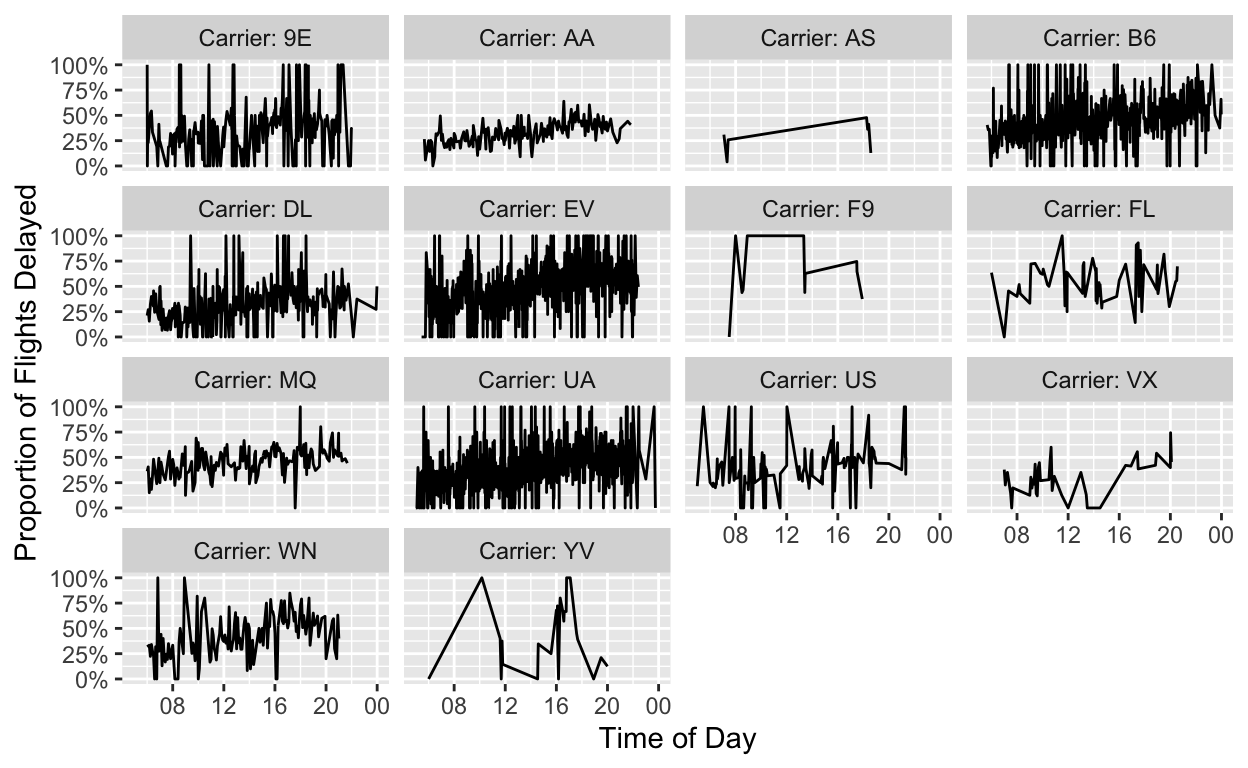

Now that we have done a speed comparison, we can create the nice plot we all came for.

df_plot %>%
  dplyr::mutate(carrier = paste0("Carrier: ", carrier)) %>%
  ggplot(aes(x = sched_dep_time, y = delay_pct)) +
    geom_line() +
    facet_wrap("carrier") +
    ylab("Proportion of Flights Delayed") +
    xlab("Time of Day") +
    scale_y_continuous(labels = scales::percent) +
    scale_x_datetime(date_breaks = "4 hours",
                    date_labels = "%H")

It looks to me like flights later in the day might be a little more likely to experience delays, which we saw in our last class with this data. However, here we have learned how to work with data not necessarily loaded in memory.

Summary

There are lots of ways you can work with large data in R. A few that we learned about today include

Hopefully this will help the next time you encounter a large dataset in R.

Reuse

Text and figures are licensed under Creative Commons Attribution CC BY-NC-SA 4.0. The figures that have been reused from other sources don't fall under this license and can be recognized by a note in their caption: "Figure from ...".

Citation

For attribution, please cite this work as

Hicks (2021, Oct. 12). Statistical Computing: Strategies to deal with large data in R. Retrieved from https://stephaniehicks.com/jhustatcomputing2021/posts/2021-10-12-dealing-with-large-data/

BibTeX citation

@misc{hicks2021strategies,
  author = {Hicks, Stephanie},
  title = {Statistical Computing: Strategies to deal with large data in R},
  url = {https://stephaniehicks.com/jhustatcomputing2021/posts/2021-10-12-dealing-with-large-data/},
  year = {2021}
}
