Pre-lecture materials

Read ahead

Before class, you can prepare by reading the following materials:

Prerequisites

Before starting you must install two additional packages:

devtools - this provides many additional tools for building packages
roxygen2 - this provides tools for writing documentation

You can do this by calling

install.packages(c("devtools", "roxygen2"))

or use the “Install Packages…” option from the “Tools” menu in RStudio.

Acknowledgements

Material for this lecture was borrowed and adopted from

https://rdpeng.github.io/Biostat776/lecture-building-r-packages

Learning objectives

At the end of this lesson you will:

Create an empty R package within RStudio
Design a R function and write documentation
Describe what a DESCRIPTION file is and what goes in it
Be able to build and install a R package

Introduction

This lesson will cover how to build R packages using R and RStudio. Using RStudio for this lesson will be critical as RStudio includes a number of tools that make building R packages much simpler.

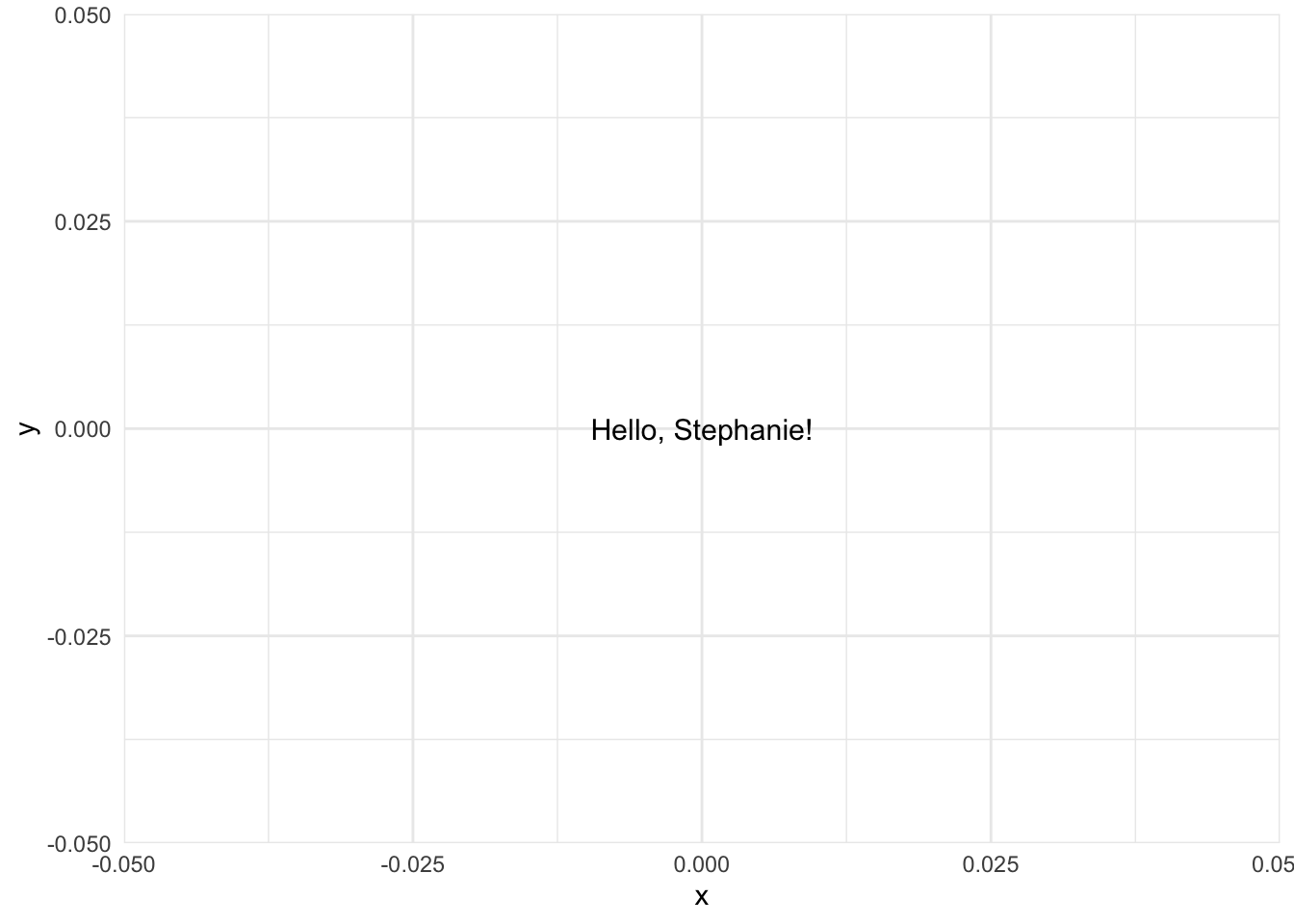

For the purposes of demonstration in this lesson, we will be building a package called greetings that has a single function called hello(). The hello() function takes a single argument called name (which is required) and makes a plot containing a message directed at name. For example,

library(greetings)
hello("Stephanie")

Admittedly, this is not a useful package, but it allows us to demonstrate all of the necessary ingredients for building a simple R package.

Create a New R Package Project

Creating a new R packages begins with creating a new RStudio project.

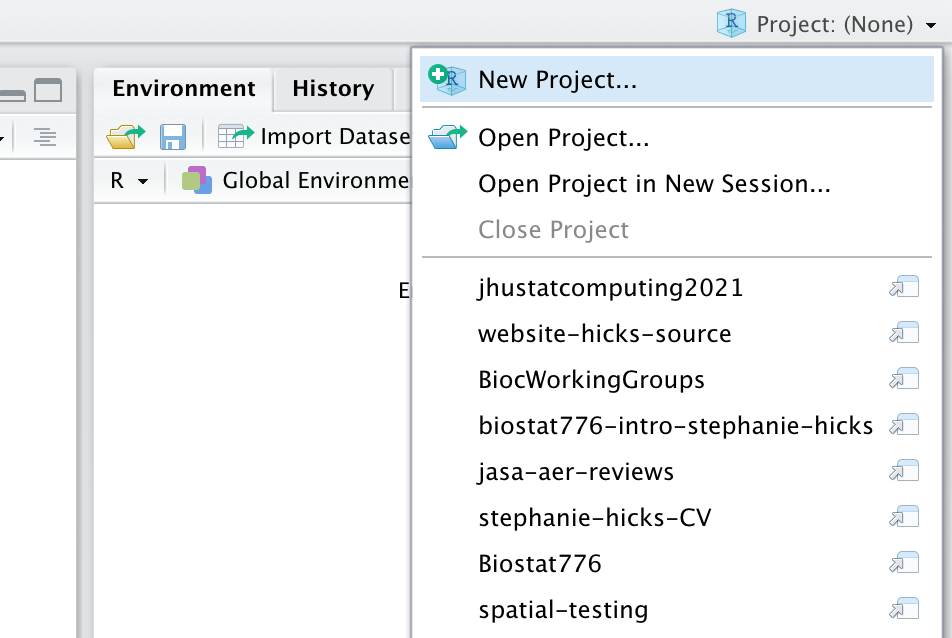

A screenshot of starting a New Project in R

You should choose New Directory as this will be a brand new project (not an existing project).

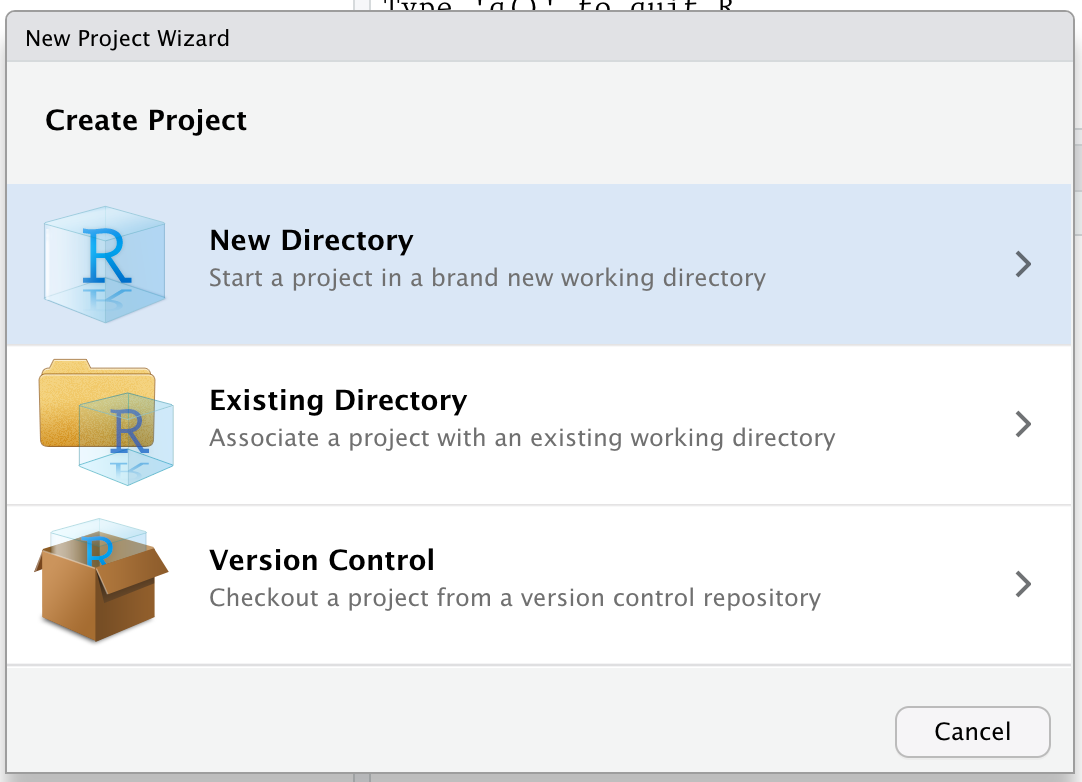

A screenshot of starting a New Directory for a New Project in R

Next, you should choose the “Project Type” as R Package using devtools (you may need to scroll down a little in that menu).

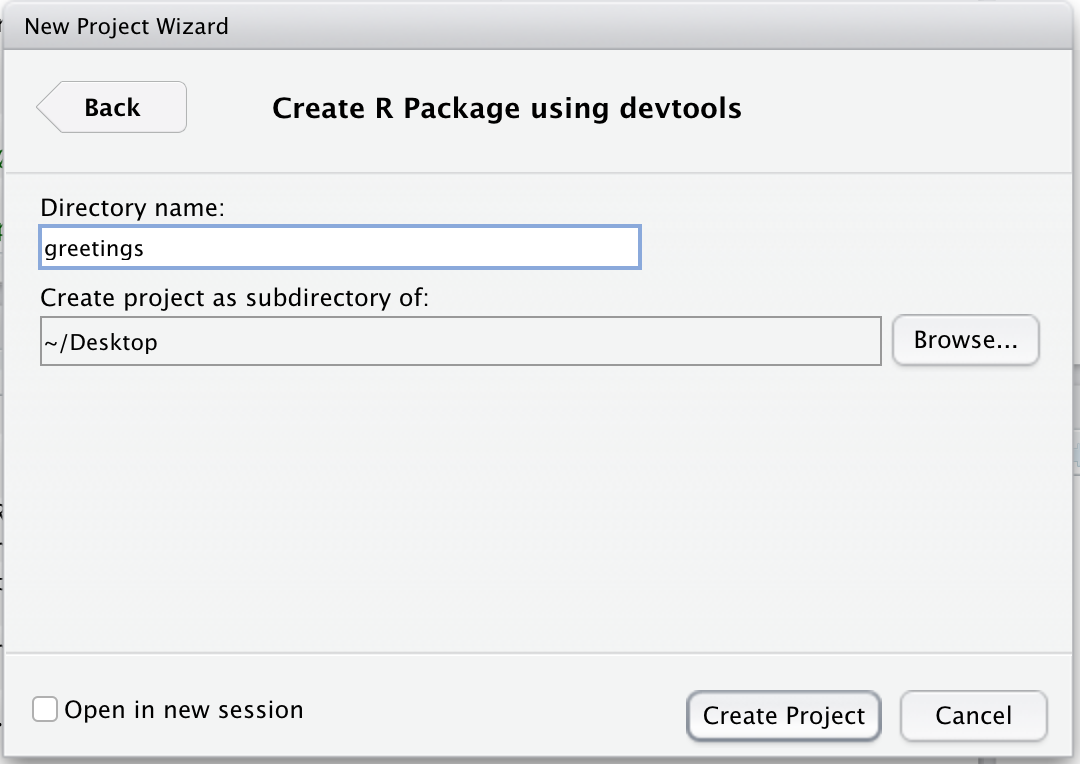

Finally, you should specify the name of your package. For this example, we will use greetings as the name of the package. Also you should double check the name of the sub-directory listed under “Create project as subdirectory of” is a directory that you can find.

Note

The name of this directory should not have any spaces in its name.

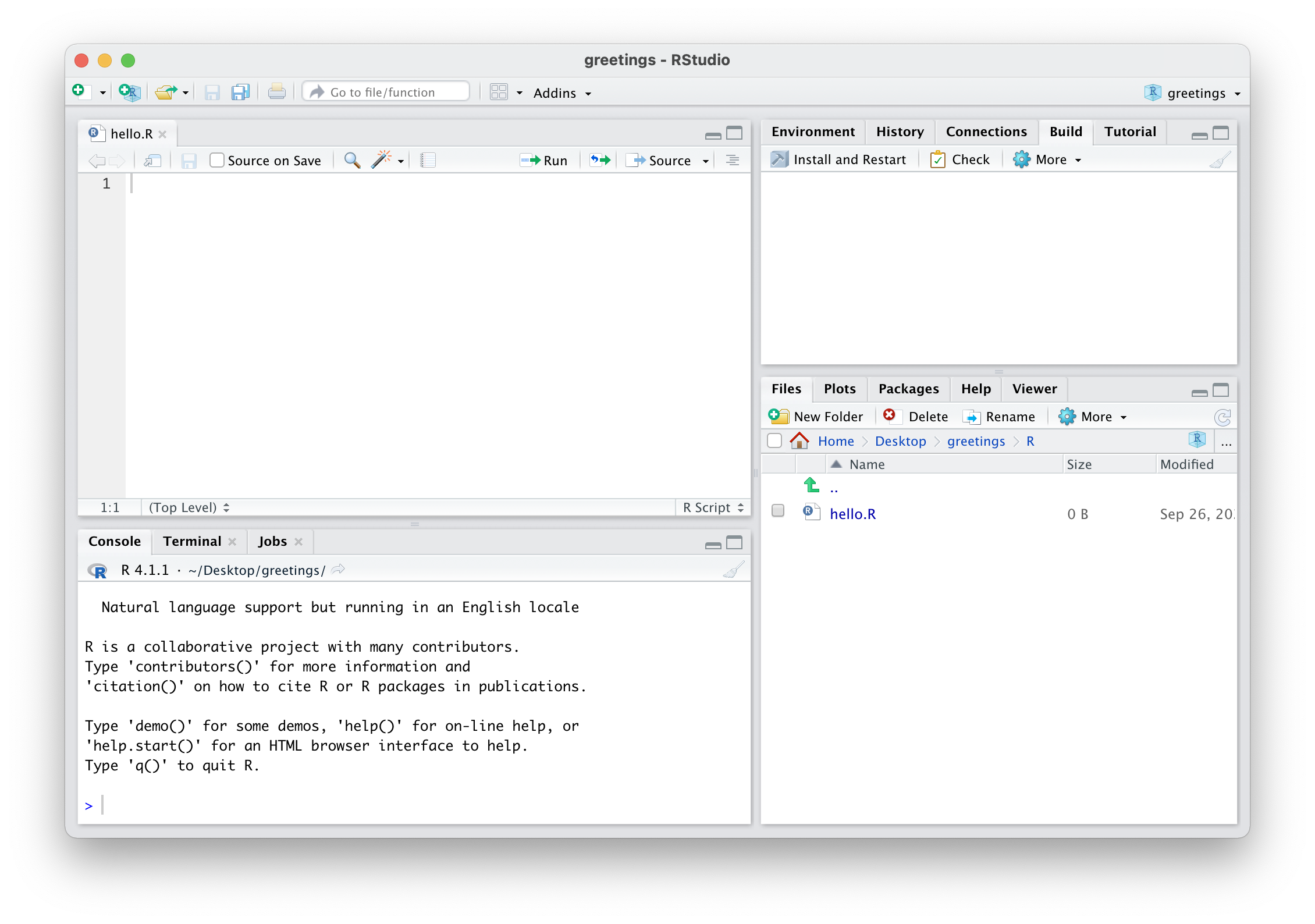

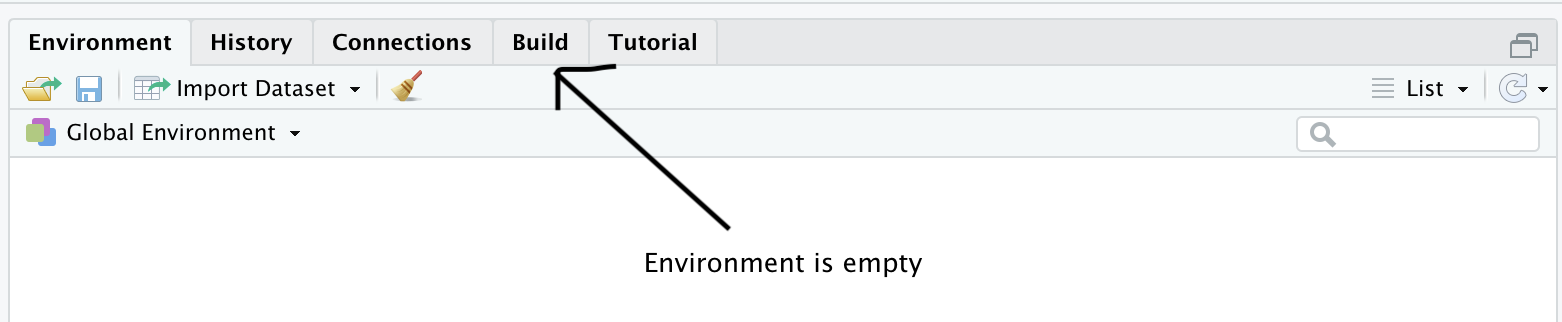

Click “Create Project” and allow R and RStudio to restart. You should get a brand new session. You will also see a window with a series of tabs. One of those tabs will be called Build and that will be important as we build our package.

Configure Build Tools

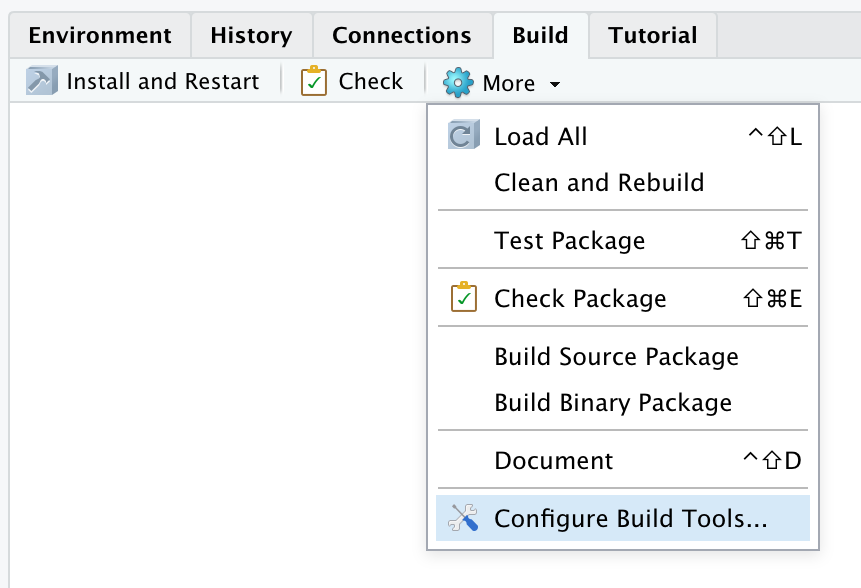

The next step after creating a new project is to configure your build tools. Click on the Build tab and then More and then Configure Build Tools….

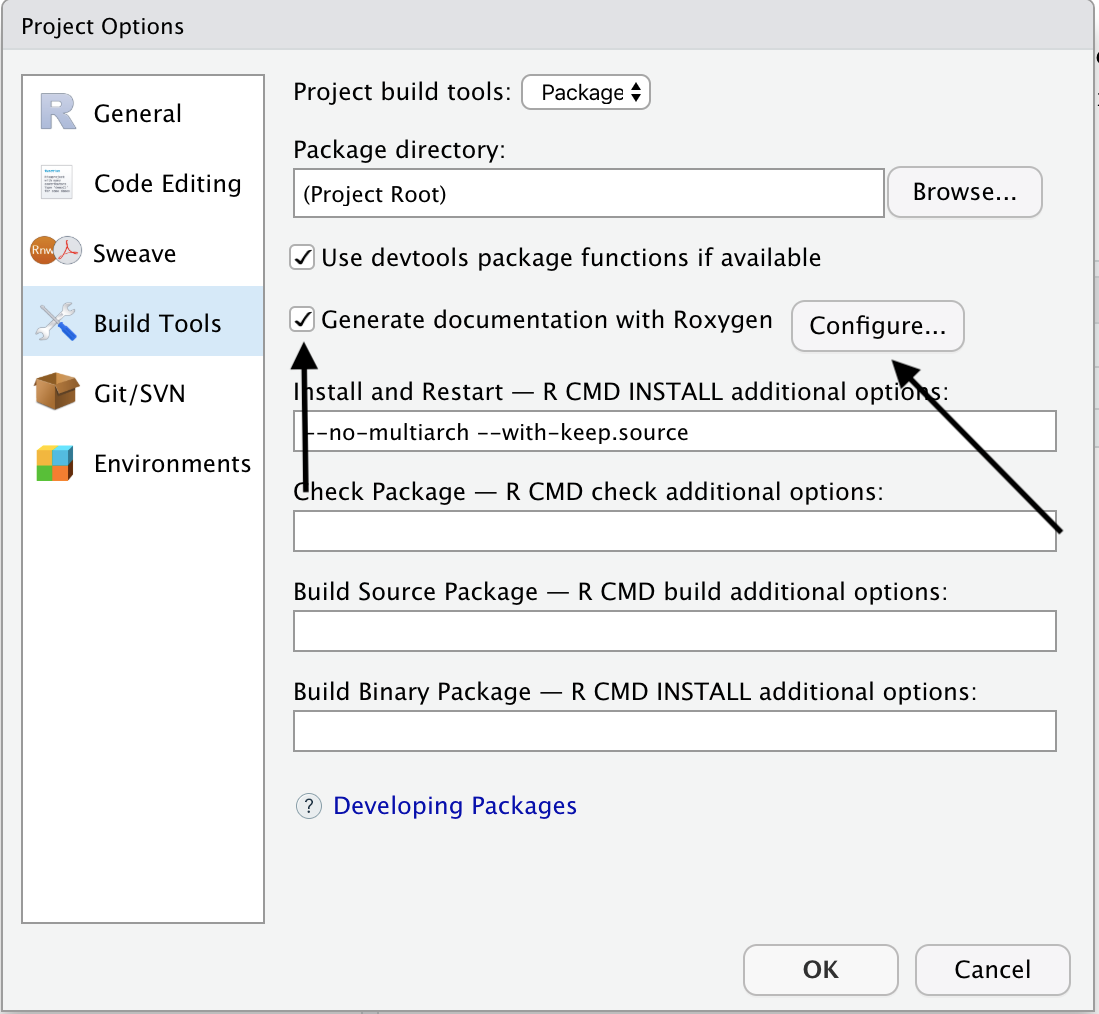

In the next screen, you should make sure that the check box for Generate documentation with Roxygen is checked. Then click the Configure… button.

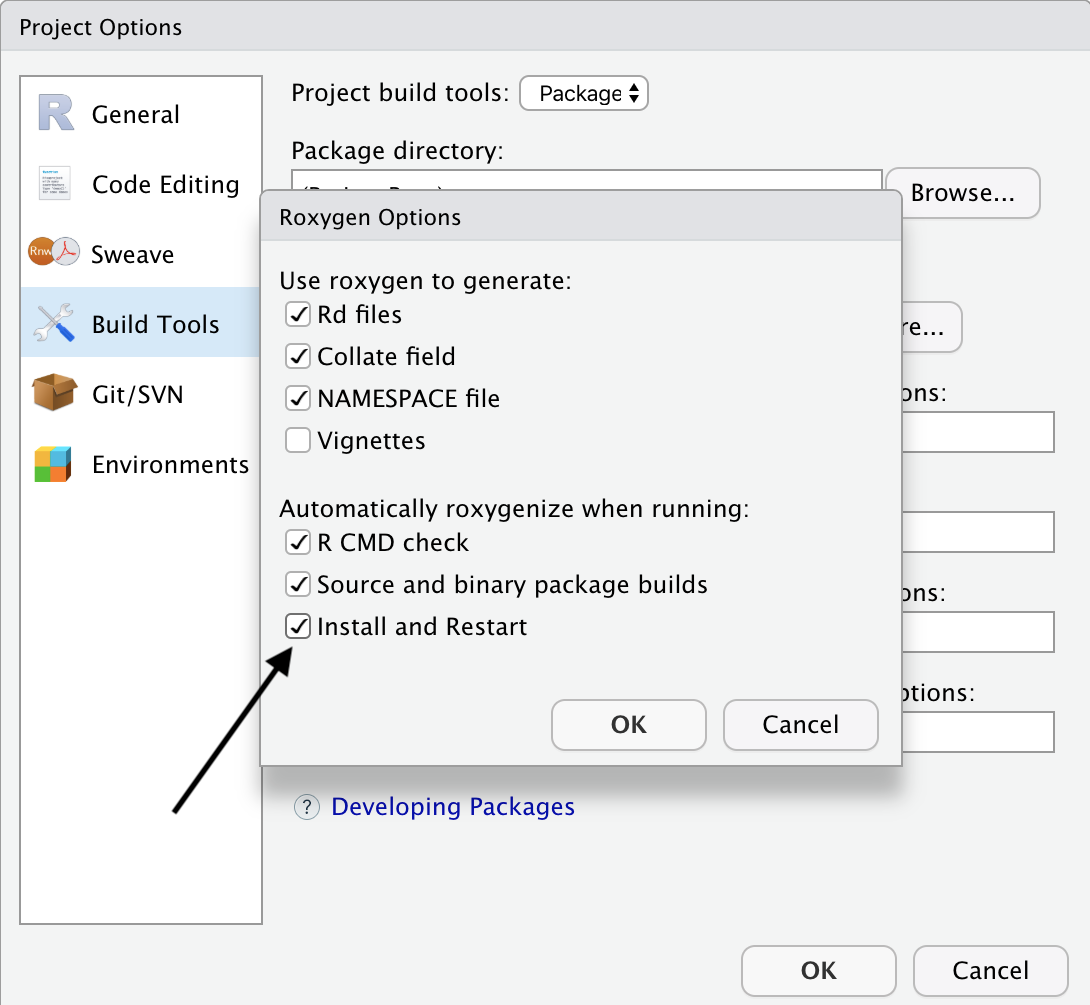

In the next menu, make sure to check the check box for Install and Restart.

Then click “OK” and then “OK” again to exit the options menu.

R Package Files

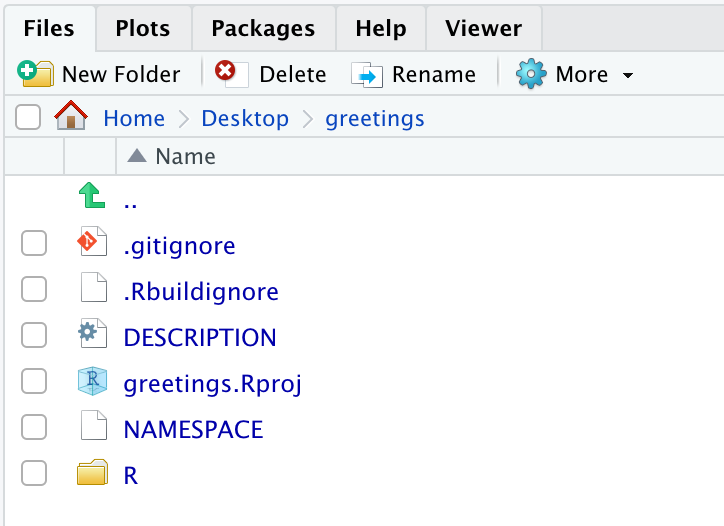

In this session, there will be the following files listed in the file browser.

The files we will focus on here are

the DESCRIPTION file; and
any files in the R sub-directory. This package will only have one R script in the R sub-directory.

There is no need to worry about the other files for now.

Edit main files

Now, we need to write the R code and documentation for our one function in this package.

Add a R Script file

First, create an R script in which the R code will go. You can do this by clicking on File > New File > R Script.

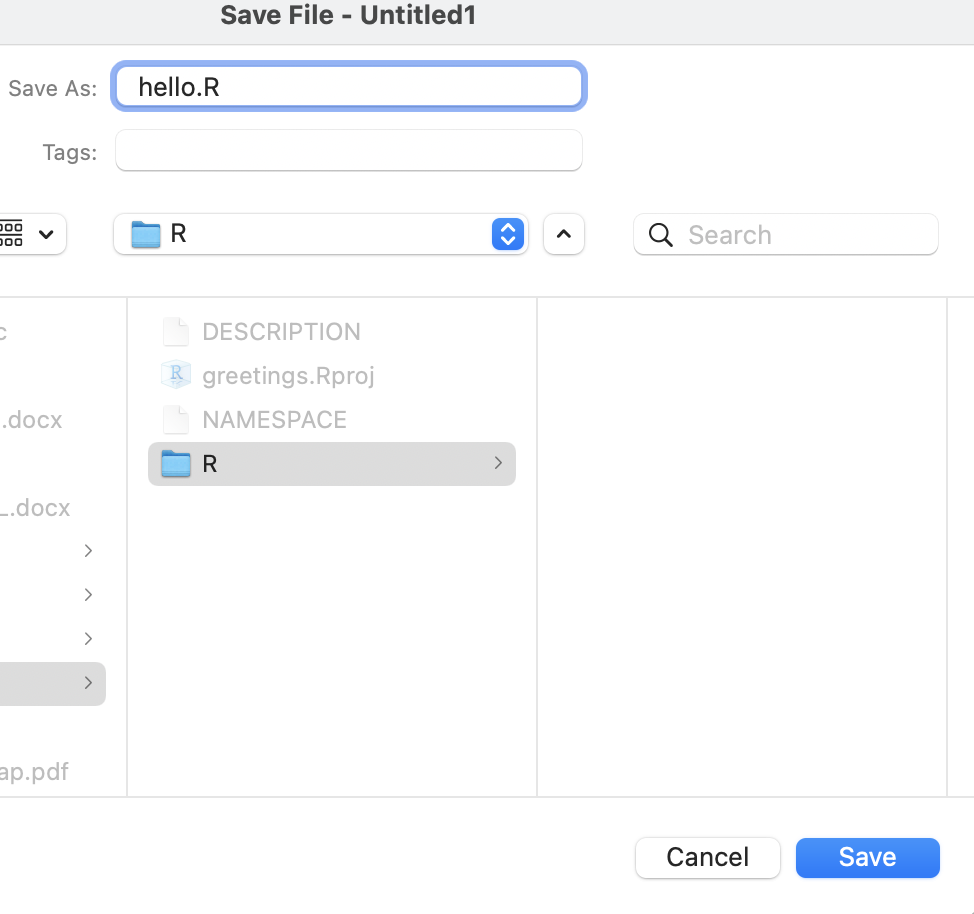

Saving a new R Script file called hello.R

Note

Make sure that your R script is saved inside the R/ sub-directory.

R Script file must be in the R/ sub-directory

Next, once you have your R Script created, you can start to write the function and the documentation.

Note

The idea is that when you write a function in a R package, just above the function is the documentation. The function is written in the usual way and the documentation is written using a special style.

Documentation

Let’s start with the documentation. Here is the documentation for the hello() function.

#' Print a Greeting
#'
#' Print a greeting for a custom name
#'
#' @details This function make a plot with a greeting to the name passed as an argument to the function
#'
#' @param name character, name of person to whom greeting should be directed
#'
#' @return nothing useful is returned.
#'
#' @import ggplot2
#' @export
#'
#' @examples
#' hello("Chris")
#'

We will take each line of documentation in order:

The first line is a short title for the function
The next line is the “description” line and should be a slightly longer description of what the function does. Generally, this line is one sentence.
This line contains the first Roxygen directive, which is @details. This directive indicates that the text that comes afterwards has detailed information about the function.
The next Roxygen directive is the @param directive. This indicates the name of the parameter that the function will accept. In this case, this is the name to which the greeting will be directed.
The @return directive indicates what the function returns to the user. This function does not return anything useful, but it is still useful to indicate that.
This function requires the ggplot() function and associated plotting functions. Therefore we need to use the @import directive to indicate that we need to import all of the functions in the ggplot2 package.
We want to indicate with the @export directive that this function should be visible to the user (i.e. we want the user to call this function). Therefore, the function should be exported to the user. More complex packages may have many functions and not all of them will be functions that the user will need to call. In addition, any function that is exported is required to have documentation.
Under the @examples directive, you can put R code that demonstrates how to call the function. Here, we provide a simple example of how to use the hello() function.

Once the documentation is written, we can write the code for the function itself. The complete R script file looks as follows.

#' Print a Greeting
#'
#' Print a greeting for a custom name
#'
#' @details This function make a plot with a greeting to the name passed as an argument to the function

#' @param name character, name of person to whom greeting should be directed
#'
#' @return nothing useful is returned.
#'
#' @import ggplot2
#' @export
#'
#' @examples
#' hello("Chris")
#'
hello <- function(name) {
        message <- paste0("Hello, ", name, "!")
        ggplot() +
                geom_text(aes(0, 0), label = message, size = 4) +
                theme_minimal()

}

Note

In the function we do not actually plot any data. We just use the ggplot() function to setup a plot window so that we can add the message using geom_text().

Editing the DESCRIPTION file

After writing the code and documentation we need to edit the DESCRIPTION file for the package. This contains metadata about the package. Here is the final DESCRIPTION file for the package.

Package: greetings
Title: Displays a greeting plot
Version: 0.0.0.9000
Authors@R:
    person(given = "Stephanie",
           family = "Hicks",
           role = c("aut", "cre"),
           email = "shicks19@jhu.edu",
           comment = c(ORCID = "0000-0002-5682-5998"))
Description: This package displays a nice greeting for a custom name.
Imports: ggplot2
License: GPL (>= 3)
Encoding: UTF-8
LazyData: true
Roxygen: list(markdown = TRUE)
RoxygenNote: 7.2.1

We can go through each field one at time:

Package is just the name of the package. In this case it is greetings.
Title is a short description of the package.
Version is the version number. This is the first version so we use 1.0.
Authors@R indicates the author of the package (this is you!). This package only has one author but packages can have multiple authors. Look at the help file for person() to see how this is specified.
Description provides a multi-sentence description of what the package does.
Imports is only needed because the package imports the functions from the ggplot2 package. You will need to add this line explicitly to the DESCRIPTION file.
License indicates the legal license for the package. This should be an open source license and we use the GNU General Public License Version 3 here. You can read more about R package licenses. Every R package must have a license.

The remaining fields are auto-generated by RStudio and you don’t need to worry about them for now.

Build and Install

Once you have the code, documentation, and DESCRIPTION file written, you can build the package and install it in order to try it out.

Within RStudio

In the Build tab, click the button labeled Install and Restart.

Note

On more recent versions of RStudio, it might just stay “Install”, not “Install and Restart”.

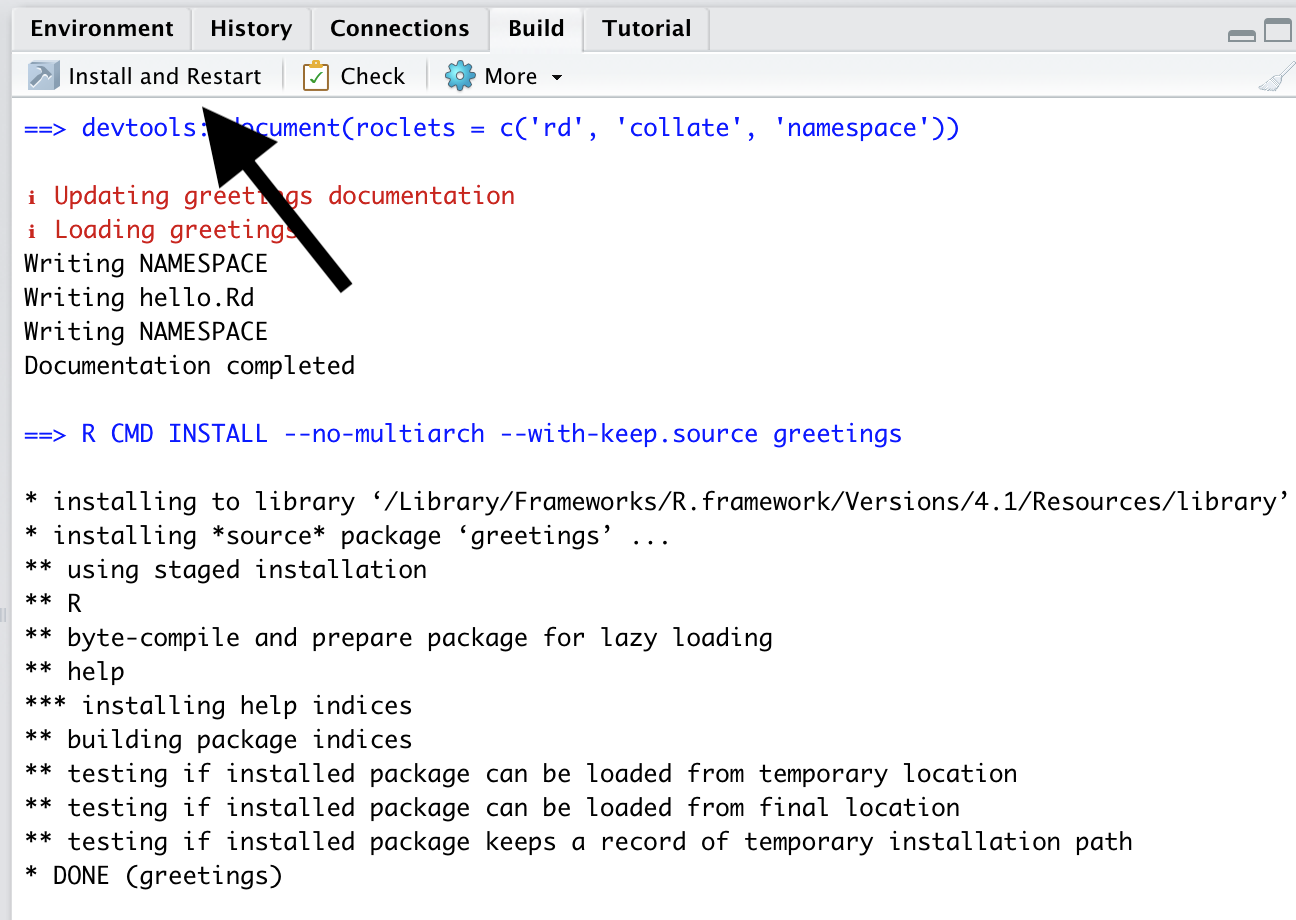

Click the Build tab to install and restart

Clicking this button will

Build the R package
Install the R package on your system
Restart the R session
Load your package using the library() function.

Once this is done, you can call the hello() function and see the results.

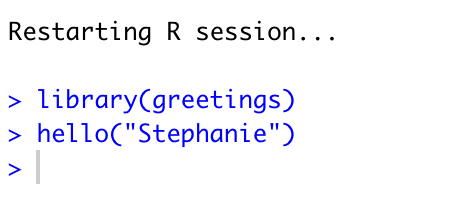

Now you can load and use the hello() function

Build Source Package

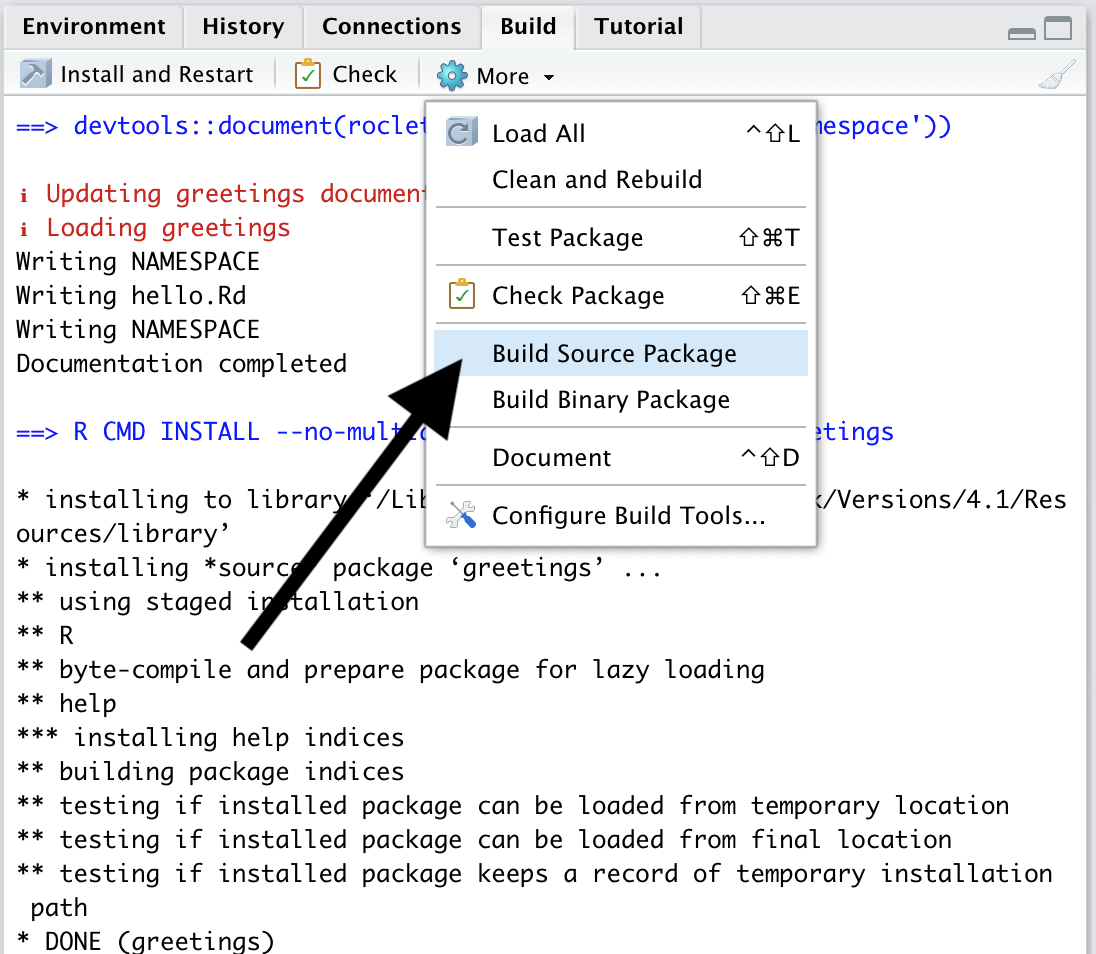

Once the package is completed, you must build a source package so that it can be distributed to others. This can be done in the Build menu and clicking Build source package.

This will produce a file with a .tar.gz extension. This is the package source file.

You should see a screen that looks something like this.

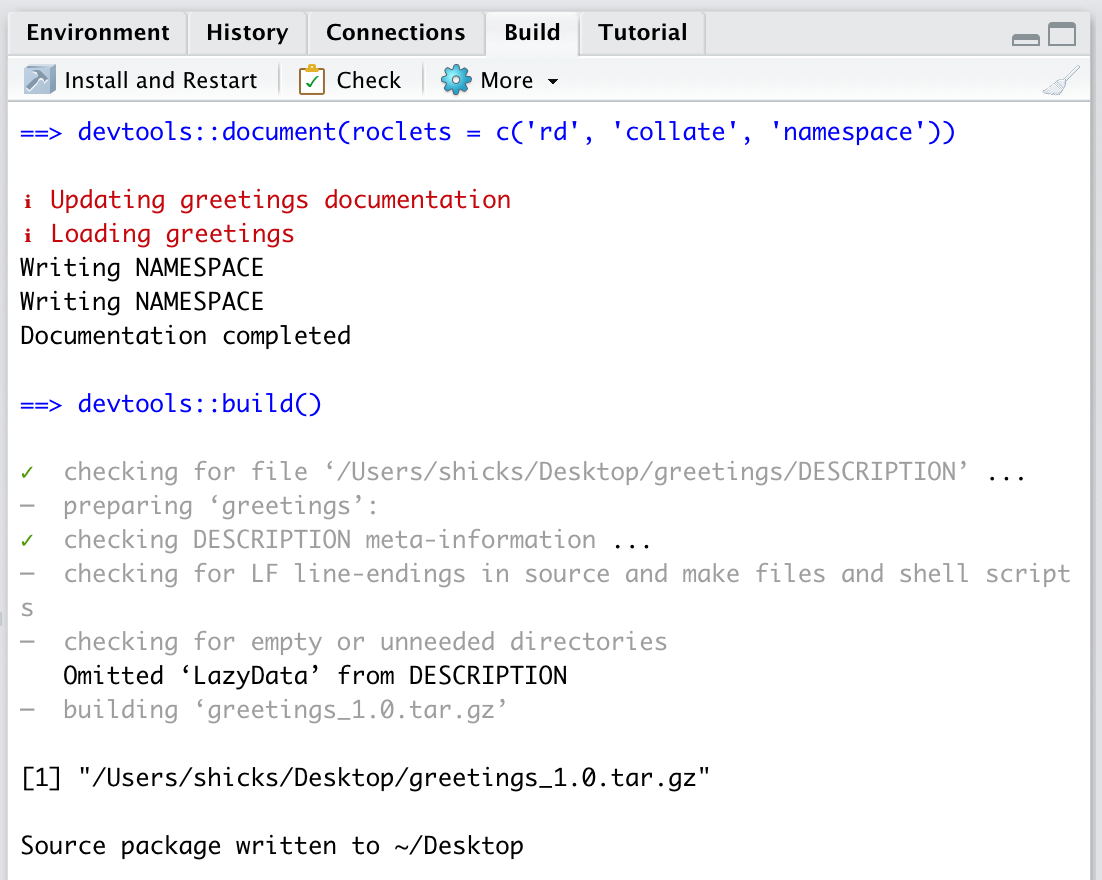

Source file is built (file ends in a .tar.gz)

Once your package is built, you can send to others and they will be able to install it. The package source file would also be the file that would be uploaded to CRAN if you were submitting a package to CRAN.

Pro-tip

If you are interested, you can also use the usethis package to create, build, document, and install a R package:

https://usethis.r-lib.org

FWIW, this is how I create R packages.

Install from GitHub

You can also install an R package that’s available on GitHub. For example, here is the greetings package on my personal GitHub page - https://github.com/stephaniehicks/greetings

To install this, we can use the remotes::install_github(repo="username/repo") function:

remotes::install_github(repo = "stephaniehicks/greetings")

Final thoughts

Pro-tip

You can create multiple .R files in the /R folder. Typically, its best to have one .R file for each of your exported functions. For the non-exported functions, you can place into one file (e.g. utils.R, etc). You can read more about this here https://r-pkgs.org/code.html.
You will want to check your package with R CMD check or devtools::check(). You can read more about this here https://r-pkgs.org/check.html.
When you define print methods with generic functions that exist in base R (e.g. print.object), you need use the variable argument (...)

print.object <- function(x, ...){
}

instead of

print.object <- function(x){
}

This is because print() in base R has a set of arguments and to let your own S3 method pass the R CMD check you need allow for the same arguments as with the base R generic. Otherwise, you’ll get warnings about “checking S3 generic/method consistency …”.
